Industrial sectional doors

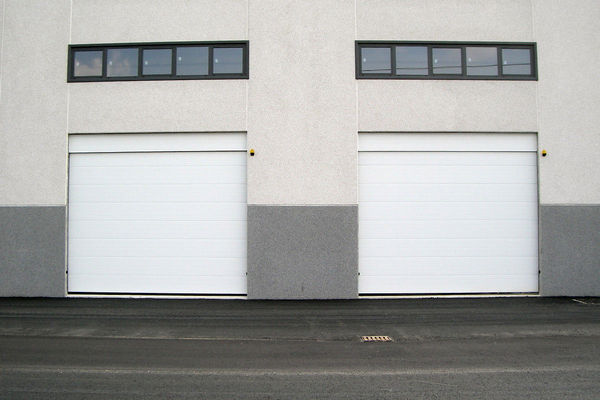

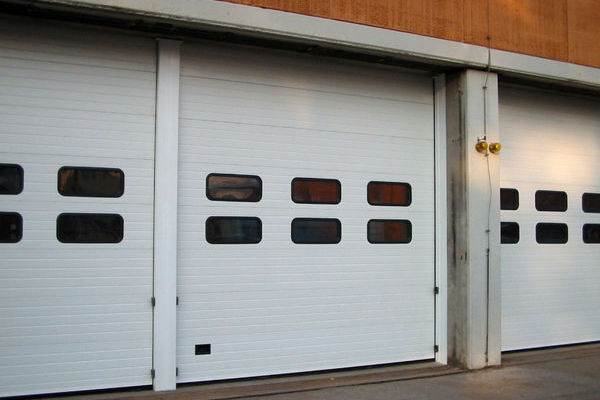

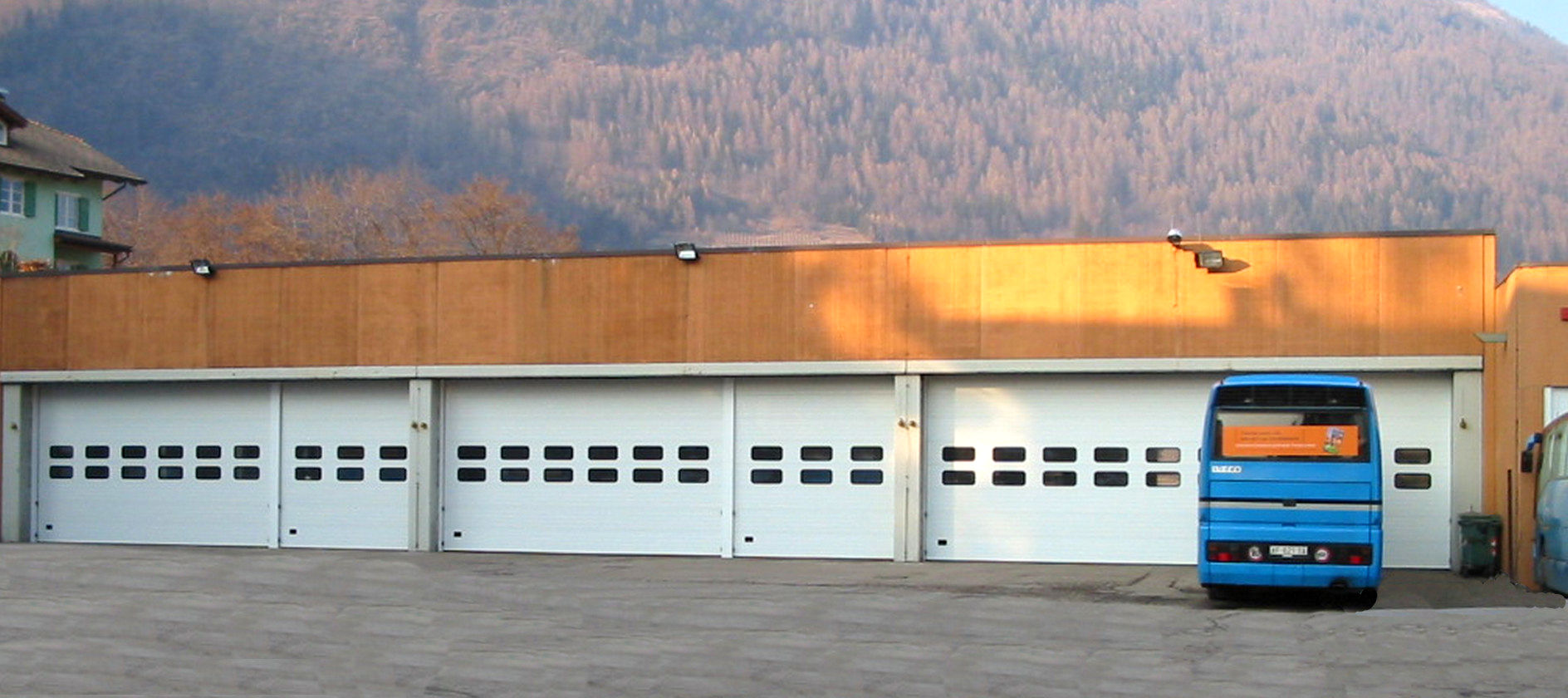

The slatted insulated industrial sectional door model is constructed with steel panels insulated with high-density polyurethane foam with anti-pinch beak (dim.500 x 40 mm and 610 x 40 mm). Standard finish outer side with 125mm slats white similar RAL 9002 embossed ; standard finish inner side white embossed stucco similar RAL 9010.

Non-standard painting colors of your choice in the RAL table.
  • Porte sezionali industriali
  • Porte sezionali industriali
  • Porte sezionali industriali
  • Porte sezionali industriali

Features

  • White aluminum nonscalable shelves and hinges.
  • Colored lifting handle as standard finish.
  • Double scissor casters,galvanized steel springs.
  • Black painted aluminum base and top holder profile.
  • Spring parachute and hollow parachute are mandatory.
  • Lift handle,release lever and side lock are supplied disassembled.

1. Standard elevation
The door turns horizontally with minimal curve and slides to the ceiling.

2. Semi-vertical elevation
The door slides for the available height vertically and then turns horizontally and slides to the ceiling.

3. Vertical elevation
The door slides fully in vertical or guillotine mode.

4. Inclined elevation

The door slides upward and follows the inclination of a sloping ceiling or roof. Recommended in case of sloping roofs.

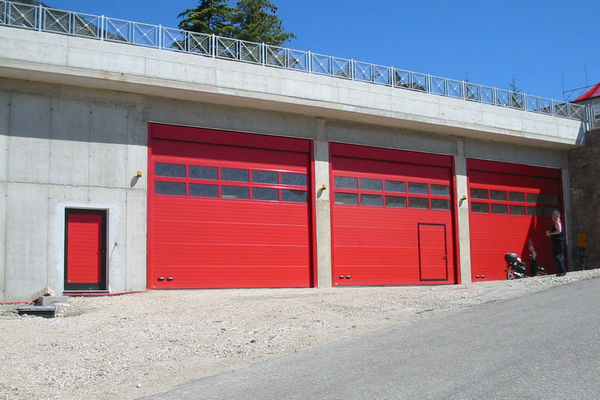

To allow personnel to pass smoothly and safely, a pedestrian door equipped with an interior panic bar and handle with external lock and cylinder can be realized in the sectional door, with minimal tripping (lowered threshold) to the floor (30 mm).

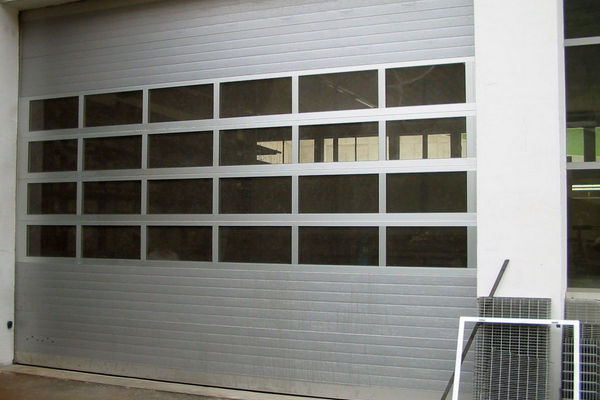

Full vision aluminum panels with the possibility of infill with: 3 mm transparent polycarbonate, 2-16-2 mm transparent double polycarbonate, 3-14-3 mm opaque or etched opaque polycarbonate, perforated sheet metal and rain flaps that also provide privacy.
